Stainless steel puff board cold storage chiller room

 Product Description    Fruit and Vegetable Cold Room

Featured Products


Product Description
    Fruit and Vegetable Cold Room                                                                                                                                                                                                                                                                                                                              Cold room freezer (also called walk in freezer) is widely used in Fishery, Fish plant, Supermarket, Hotel and Restaurant, etc. The temperature range of frozen goods walk in freeze is usually keeping in -18~-25°C by insulation and cooling system, it can be frozen up to -40~-60°C for special deep-sea fish such as tuna fish cold storage. With the help of walk in freezer, the stored fish is not perishable and the taste is good.
Stainless Steel Puf Panel Cold Storage Chiller Room

Cold Room Choosing:

According to different temperature range, cold room can be divided into 0~+5 degree Celsius cold room, -18 degree Celsius freezing room and -35 degree Celsius quick freezing room.

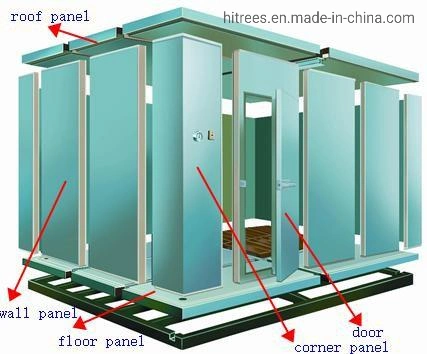

Panels Choosing:

We have pre-painted steel (color steel) PUF panels and stainless steel PUF panels for option.

Panel thick: 100mm thick for 0~+5 degree Celsius cold room, 150mm thick for -18 degree Celsius freezing room and -35 degree Celsius quick freezing room.


Product Parameters
Size
10*8*4.2m
Panel Type
Polyurethane, Cam-lock type
Panel Thickness
100mm
Panel Quantity
231.2 Square Meters
Door Size
2200*1500*100(L*W*T)
Compressor
-7 degree celsius/+40 degree celsius
Condensor
air cooled mounted together with  compressor
Refrigerant
R404a
Evaporator
DL105, 2 Sets
Piping
6m feeding line and 16m suction line

Detailed Photos

Stainless Steel Puf Panel Cold Storage Chiller Room



Stainless Steel Puf Panel Cold Storage Chiller Room
Applied Products

Stainless Steel Puf Panel Cold Storage Chiller Room

Packaging & Shipping

Stainless Steel Puf Panel Cold Storage Chiller Room

Related Products

Stainless Steel Puf Panel Cold Storage Chiller Room
