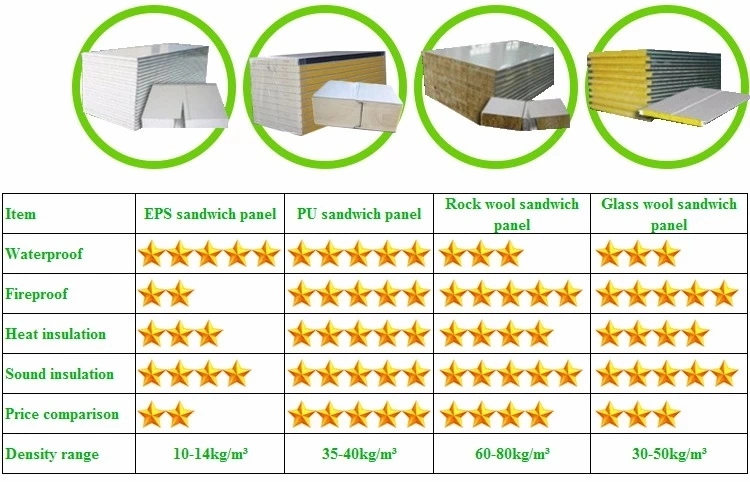

Globalspan ThermPanel® Sandwich panel Type:PU sandwich panel, EPS sandwich panel, Glass wool panel, Rock wool panel, clean room panel, PU sealed glass wool panel, PU sealed rock wool sandwich panel. Sandwich panels are widely used as an external cladding for single and multi-storey buildings, where they are required to provide weather resistance, and resistance to wind-loading, access loads, self-weight and so on. However, they are also used to create insulated internal envelopes, ceiling panels, partitions (for example in cold stores) and for fire-resisting compartment walls.
|Effective width||Wall panel:500-1150mm|
|Roof Panel: 950mm 980mm 1000mm|
|Material||Gl, PPGI, PPGL, Stainless Steel, Alunimum|
|User||Roof and wall panel for factory buildings, storages, warehouse, exhibition halls, gymnasiums|
|Character||Light weight, heat insulation, water resistant, easy installation|
Fire Prevention:The flame resistance level reaches the level A,which has improved the overall fireproof performance of steel buildings
Thermal Insulation: The two edges of the tongue-and-groove is filled with polyurethane foams,which effectively stops heat conduction and rain leakage,prevents reduction of strength and thermal insulation perforance caused by moisture absorption and makes fireproof and thermal insulation performance more durable.
The high volumetric weight core material guarantees better thermal insulation performance (the volumetric weight of rock wool core material > 120kg/m3, the volumetric weight of glass wool > 64kg/m3).
Beautiful Design: the panel adopts hidden-screw node design and has diversified panel effects.
Building types that commonly feature sandwich panels include: Industrial buildings, processing plant, temporary buildings, storage buildings, clean rooms, agricultural building, shopping centers, sports facilities, transport buildings
Packing and Delivery1. Packaging Details: According to international export standard for Fireproof Australian standard rockwool / mineral wool sandwich panel 50mm 75mm 100mm wall panel and roof panel
2. Delivery time:15 days after deposit
Why Choose Us
1. Diverse Choice of cores- waterproof rock wool, fireproof eps, pu,paper honeycomb,aluminium honeycomb,magnesium+rock wool and magnesium grid.
2. Wide range of coating systems and anti-bacterial coating option.
3.Different thickness providing superior load bearingcapacity and stability.
4.Flexibility - variable widths to suit layout.
5. Integrated envelope solution doors, windows,aluminium extrusion comers, floor tracks,air return panel and other components
6.Longer panel length-clean room heights over 6 meters.
Our companyGlobal Span is a professional international engineering company.Our business scope covers project consultancy,design,R&D, delivery and construction.With more than 13 years of international project operation experience and technology reserve,Global Span has formed a perfect one-stop systematic solution service capacity in steel structure construction industry,pharmaceutical manufacturing industry,medical care service,electronic and biotech industry,serving customers from more than 50 countries and regions in the world.
Global Span owns 5 brands. ThermPanel® is the brand of sandwich panel.Excellent thermal insulation is one of the most obvious features. TemBuild® is the brand of prefab house,especially the temporary buildings application such as worker camp for office,living.GraceBuild® is the brand of customized prefab buildings.Living gracefully is the end of the GraceBuild®.SteelSpan® is the brand of prefabricated steel structure buildings,which most are large span buildings.CleanBuild® is the brand of clean room system.ColorShine ® is for the metal single panel systems.
To serve global customers and create lasting value is our mission. At Global Span, we treat customers as our partners and value their ideas and experiences. In the early stage of each project, we actively strengthened communication and cooperation with customers and all partners as a team.
Our professional engineers,architects,project managers and construction managers have the expertise and experience to tailor innovative solutions to meet your individual needs wherever you are. We are committed to providing customers with innovative ideas in all aspects of the project, encouraging and promoting innovation in the business, providing industry-leading solutions, and creating world-class projects.
RFQQ1: You are manufacture factory or trading company?
A: We are trading and manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q2: What is the terms of delivery?
A: EXW, FOB, CIF, CFR, DDU
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit. For production period,
it usually takes about 15 days - 30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the compliment samples?
A: Yes, we provide the free samples if available in stocks, the transportation fee is borne by buyer.
Q7. What is your terms of payment?
A: Normally 30% T/T as the upfront deposit, 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q8: How to contact you?
A: You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
